Overview
7680Hz Refresh Rate
Smooth image without stutter, excellent viewing experience.
10000:1 High Contrast Ratio
Dazzling and Vivid Images，to make you see the most natural and real world.

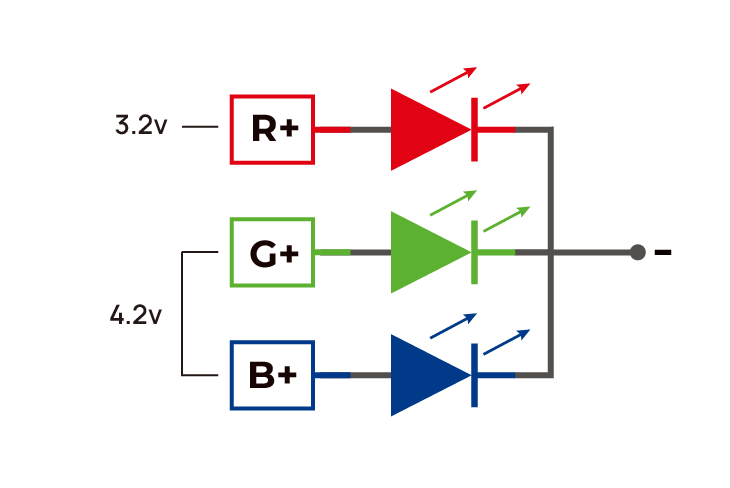

Common Cathode Design Dual Voltage Step-down Power Supply
Product use common cathode design to reduces heat generation, lower screen temperature, improves stability and longevity.
IP65 High Protection

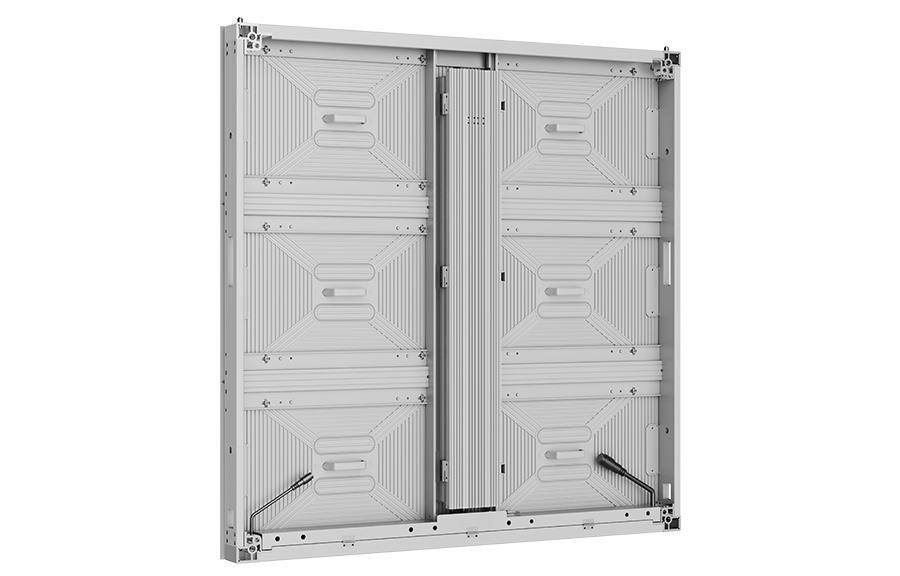

IP65 protection level, integrated all-aluminum design, with corrosion resistance, high melting point,flame retardant and fire resistance, moisture resistance and salt spray resistance, can work well in the seaside environment for a long time.

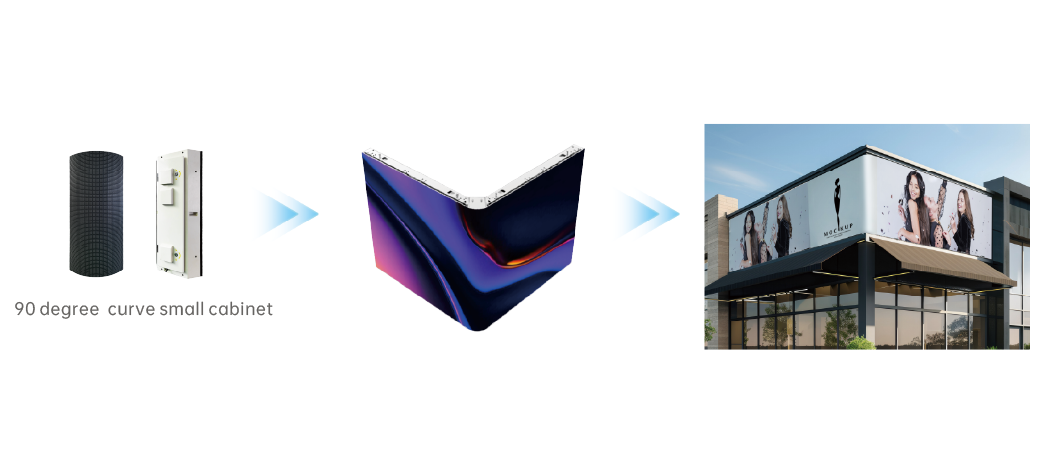

Naked-eye 3D
Splice with small curve cabinet can make a smooth curve corner video wall,perfect seamless corner and also cabinet can be cut 45 degree left and right side to make 90 degree corner video wall.Perfect naked-eye 3D solution.
SPECIFICATIONS
Category
Pixel Pitch(mm)
Module Resolution(W×H)
Cabinet Resolution(W×H)
IP Rating(front/back)
Brightness(nits)
Ave.Power Consumption(W/m²）
Refresh Rate(Hz)
| PA44 | PA57 | PA66 | PA80 | PA100 |
| 4.4 | 5.7 | 6.66 | 8.0 | 10 |
| 108x72 | 84x56 | 72x48 | 60x40 | 48x32 |
| 216x216 | 168x168 | 144x144 | 120x120 | 96x96 |
| IP65 | IP65 | IP65 | IP65 | IP65 |
| 5000-10000 | 5500-10000 | 5500-10000 | 6000-10000 | 6000-10000 |
| 200 | 200 | 200 | 200 | 200 |
| 7680 | 7680 | 7680 | 7680 | 7680 |
|
